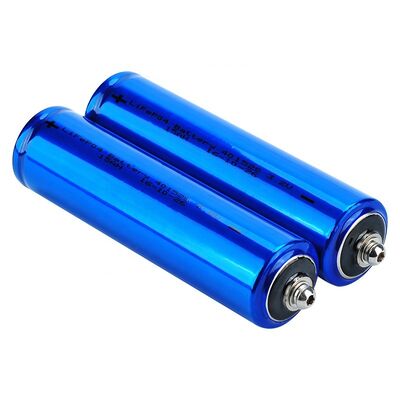

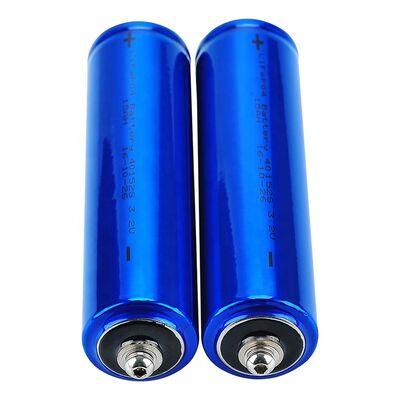

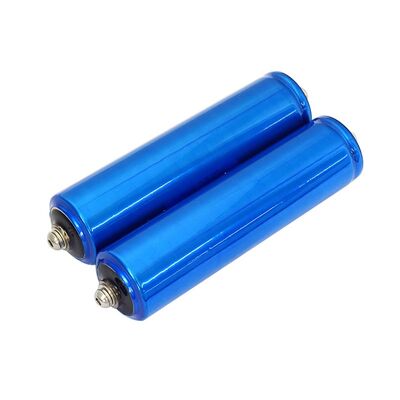

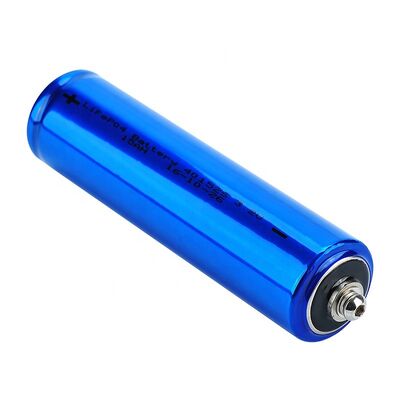

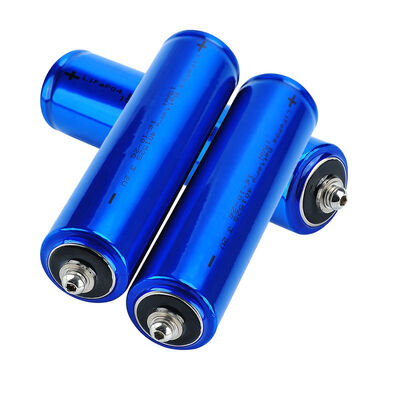

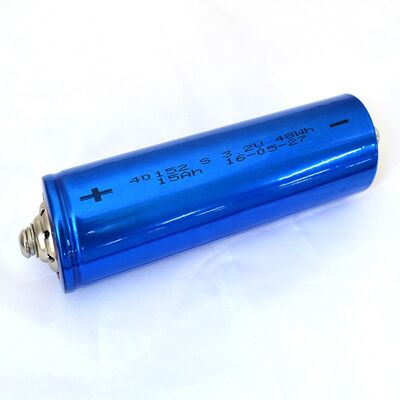

XL 40152 3.2v 15Ah LiFePO4 Battery Cell 48v Electric Motorcycle Battery Pack Outdoor Power Music Box 1000 Cycle Life 40x152mm
Product Details
| Battery Type: | LiFePO4 | Type: | Lifepo4 Battery |
|---|---|---|---|
| Specifications: | 40152 | Capacity: | 15Ah |
| Voltage: | 3.2v | Size: | 40mm*152mm |
| Temperature: | -20~60 | Cycle Life: | 1000 Times |
| Scope Of Use: | Consumer Electronics, Digital Products, Beauty Equipment,etc. | Warranty: | 12 Months |
| Weight: | 483g |
Product Description
| No. | Item | Specifications | Remak |
| 1. | Specifications(40152) | capacity:15Ah | 0.5C Rate discharge after standard charge |
| 2. | voltage | 3.2V | Mean operation voltage during standard |
| 3. | Voltage at end of discharge | 2.0v | Discharge cut-off voltage |
| 4. | Charging cutoff voltage | 3.65V | |
| 5. | Impedance | ≤10mΩ | 3.2v 15Ah lifepo4 battery |
| 6. | Standard charging | Constant current 0.25C | |
| Constant voltage 3.2V | |||
| Cut-off current≤0.01C | |||
| 7. | Standard discharge | Constant current 0.5C | |
| End voltage 2.75V | |||
| 8. | Fast charge | Constant current 0.5C | |
| Constant voltage 3.2V | |||
| Cut-off current≤0.02C | |||
|
9. |
Fast discharge | Constant current 0.5C | |
| End voltage 2.75V | |||
| 10. | Maximum continuous discharge current | 10C | |
| 11. | Operation | Charge: 0~45°C | 60±25%R.H |
| Temperature range | Discharge: -20~60°C | ||
| 12. | Cycle life | 2000times | |
| 13. | Storage temperature | -20 ~ 45°C | |
| 14. | Weight | 483g | |
| 15. | Dimension(mm) | size | 40mm*152mm |
Product Highlights
Product Description No. Item Specifications Remak 1. Specifications(40152) capacity:15Ah 0.5C Rate discharge after standard charge 2. voltage 3.2V Mean operation voltage during standard 3. Voltage at end of discharge 2.0v Discharge cut-off voltage 4. Charging cutoff voltage 3.65V 5. Impedance ≤10mΩ ...
