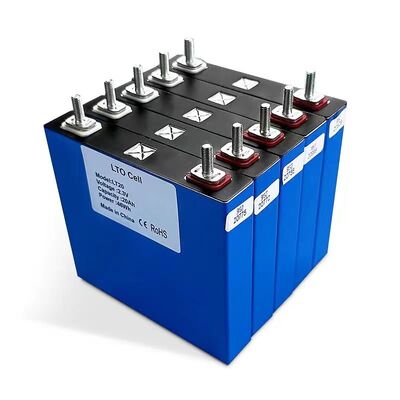

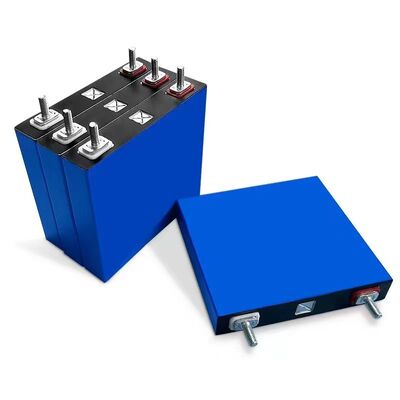

LTO 2.3V 20Ah 23ah Prismatic Battery Cell LTO Max Discharge 500A and Fast Charge 160A Titanate Batteries

LTO 2.3V 20Ah 23ah Prismatic Battery Cell LTO Max Discharge 500A and Fast Charge 160A Titanate Batteries
LTO 2.3V 20Ah 23ah Prismatic Battery Cell LTO Max Discharge 500A and Fast Charge 160A Titanate Batteries LTO 2.3V 20Ah 23ah Prismatic Battery Cell LTO Max Discharge 500A and Fast Charge 160A Titanate Batteries LTO 2.3V 20Ah 23ah Prismatic Battery Cell LTO Max Discharge 500A and Fast Charge 160A Titanate Batteries LTO 2.3V 20Ah 23ah Prismatic Battery Cell LTO Max Discharge 500A and Fast Charge 160A Titanate Batteries LTO 2.3V 20Ah 23ah Prismatic Battery Cell LTO Max Discharge 500A and Fast Charge 160A Titanate Batteries LTO 2.3V 20Ah 23ah Prismatic Battery Cell LTO Max Discharge 500A and Fast Charge 160A Titanate Batteries

Large Image :  LTO 2.3V 20Ah 23ah Prismatic Battery Cell LTO Max Discharge 500A and Fast Charge 160A Titanate Batteries

Product Details:
Place of Origin: Guangdong,China
Brand Name: XL
Model Number: LT20
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: CN¥81.67-95.46
Contact Now Chat Now

LTO 2.3V 20Ah 23ah Prismatic Battery Cell LTO Max Discharge 500A and Fast Charge 160A Titanate Batteries

Description
Battery Size: LTO 20ah Application: Toys, Power Tools, Home Appliances, Consumer Electronics, Boats, Golf Carts, SUBMARINES, Electric Bicycles/Scooters, Electric Vehicles, Electric Wheelchairs, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies, Electric For
Weight: 550g, 550g Specifications: LT20
Product Name: LTO Battery Capacity: 20ah
Voltage: 2.5v Size: 115*103*22(mm)
Temperature: -20~45 Cycle Life: 30000 Times
Warranty: 12Months Scope Of Use: Electronics,Portable Source,toys,humidifier
Anode Material: Other

1. The original Toshiba LTO battery, the new battery and the stud are not worn;
2. The capacity is above 20Ah, the voltage is above 2.3v, and the internal resistance is between 0.5-1.0m Ω; 3. Energy density (0.2C, 25 °) 176WH/L 4. We will test the battery voltage and internal resistance to match the battery to ensure good consistency; 5. We will strictly check the consistency of the battery before shipment. And weld the studs.
LTO 2.3V 20Ah 23ah Prismatic Battery Cell LTO Max Discharge 500A and Fast Charge 160A Titanate Batteries 0
Battery type
LTO battery
Moder
LT20
Size
W115*H103*T22（mm）
Voltage
2.3v
Capacity
20Ah
Temperature
-20~55°C
LTO 2.3V 20Ah 23ah Prismatic Battery Cell LTO Max Discharge 500A and Fast Charge 160A Titanate Batteries 2
LTO 2.3V 20Ah 23ah Prismatic Battery Cell LTO Max Discharge 500A and Fast Charge 160A Titanate Batteries 4
LTO 2.3V 20Ah 23ah Prismatic Battery Cell LTO Max Discharge 500A and Fast Charge 160A Titanate Batteries 6
Products Description
1.
Style
Lithium Titanate Battery
2.
Brand
SCIB
3.
Model
LT20
4.
Capacity
20Ah
5.
Typical Voltage
2.3v
6.
Internal Resistance（1KHz）
≤1.0mΩ
7.
End-of-Discharge Voltage
1.5V
8.
Recommend Constant Current
60A(3C)

Charge Voltage
2.7V
9.
Cyclelife
≥30000 Times
Fast Charge Method
Constant Current（160A ,8C)
10.
Warranty
3 Years
11.
Charging temperature
-40~60
12.
Weight
550g
LTO 2.3V 20Ah 23ah Prismatic Battery Cell LTO Max Discharge 500A and Fast Charge 160A Titanate Batteries 8
LTO 2.3V 20Ah 23ah Prismatic Battery Cell LTO Max Discharge 500A and Fast Charge 160A Titanate Batteries 10
LTO 2.3V 20Ah 23ah Prismatic Battery Cell LTO Max Discharge 500A and Fast Charge 160A Titanate Batteries 12
LTO 2.3V 20Ah 23ah Prismatic Battery Cell LTO Max Discharge 500A and Fast Charge 160A Titanate Batteries 14
LTO 2.3V 20Ah 23ah Prismatic Battery Cell LTO Max Discharge 500A and Fast Charge 160A Titanate Batteries 16
LTO 2.3V 20Ah 23ah Prismatic Battery Cell LTO Max Discharge 500A and Fast Charge 160A Titanate Batteries 18
Range of application
LTO 2.3V 20Ah 23ah Prismatic Battery Cell LTO Max Discharge 500A and Fast Charge 160A Titanate Batteries 20
LTO 2.3V 20Ah 23ah Prismatic Battery Cell LTO Max Discharge 500A and Fast Charge 160A Titanate Batteries 22
Why Choose Us
1.We not only supply lithium batteries, but also provide customers with various solutions.

2.High capacity and high density lithium ion battery.

3.Stable battery performance and high utilization rate.

4.Green environmental protection materials, safe and pollution-free.

5.Battery short circuit protection, safe to use.

6.Factory price.

7.Models complete, can be customized according to customer requirements.
Certifications
LTO 2.3V 20Ah 23ah Prismatic Battery Cell LTO Max Discharge 500A and Fast Charge 160A Titanate Batteries 24
LTO 2.3V 20Ah 23ah Prismatic Battery Cell LTO Max Discharge 500A and Fast Charge 160A Titanate Batteries 26
LTO 2.3V 20Ah 23ah Prismatic Battery Cell LTO Max Discharge 500A and Fast Charge 160A Titanate Batteries 28
LTO 2.3V 20Ah 23ah Prismatic Battery Cell LTO Max Discharge 500A and Fast Charge 160A Titanate Batteries 30
LTO 2.3V 20Ah 23ah Prismatic Battery Cell LTO Max Discharge 500A and Fast Charge 160A Titanate Batteries 32
LTO 2.3V 20Ah 23ah Prismatic Battery Cell LTO Max Discharge 500A and Fast Charge 160A Titanate Batteries 34
LTO 2.3V 20Ah 23ah Prismatic Battery Cell LTO Max Discharge 500A and Fast Charge 160A Titanate Batteries 36
LTO 2.3V 20Ah 23ah Prismatic Battery Cell LTO Max Discharge 500A and Fast Charge 160A Titanate Batteries 38
LTO 2.3V 20Ah 23ah Prismatic Battery Cell LTO Max Discharge 500A and Fast Charge 160A Titanate Batteries 40
 Company information
Our company has been specialized in battery industry for 20 years. With 15 years of design and development experience, our products have been exported to hundreds of countries and regions.
We specialize in the production of various types of polymer lithium batteries, mobile power cells, tablet batteries, P3 \ 4 \ 5, Bluetooth batteries, 18650, lithium battery packs, etc. we can develop and produce according to customers' requirements!
Our company has a large number of models, a large number of stock products for sale, can be customized model according to customer requirements, the strength of the manufacturer is guaranteed, the quality and benefit are both excellent, and the supply is sufficient!
If you can't see the model you need in our website, you can contact us, we will help you find the right model or arrange customization! Welcome to talk in detail!
LTO 2.3V 20Ah 23ah Prismatic Battery Cell LTO Max Discharge 500A and Fast Charge 160A Titanate Batteries 42
LTO 2.3V 20Ah 23ah Prismatic Battery Cell LTO Max Discharge 500A and Fast Charge 160A Titanate Batteries 44
LTO 2.3V 20Ah 23ah Prismatic Battery Cell LTO Max Discharge 500A and Fast Charge 160A Titanate Batteries 46
LTO 2.3V 20Ah 23ah Prismatic Battery Cell LTO Max Discharge 500A and Fast Charge 160A Titanate Batteries 48
LTO 2.3V 20Ah 23ah Prismatic Battery Cell LTO Max Discharge 500A and Fast Charge 160A Titanate Batteries 50
Our Advantages
We have 15 years of design and development experience,and our products are exported to hundreds of countries and regions.We are mainly engaged in all kinds of polymer lithium batteries, battery packs,etc.
Product packaging
LTO 2.3V 20Ah 23ah Prismatic Battery Cell LTO Max Discharge 500A and Fast Charge 160A Titanate Batteries 52
LTO 2.3V 20Ah 23ah Prismatic Battery Cell LTO Max Discharge 500A and Fast Charge 160A Titanate Batteries 54
LTO 2.3V 20Ah 23ah Prismatic Battery Cell LTO Max Discharge 500A and Fast Charge 160A Titanate Batteries 56
LTO 2.3V 20Ah 23ah Prismatic Battery Cell LTO Max Discharge 500A and Fast Charge 160A Titanate Batteries 58
FAQ
Q: Do you provide samples?
A: Yes, we could offer the sample.

Q: How long is your delivery time?
A: Generally it is 5-7days, it is according to quantity.

Q: How do you ship the goods and how long does it take to arrive?
A: It usually takes 5-7 days to arrive. Airline and sea shipping is also optional.

Q: How to proceed with an order?
A: Firstly let us know your requirements or application .Secondly, We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places a deposit for fomal order.Fourthly We arrange the production.

Q: Is it OK to print my logo on the product?
A: For bulk order,30% T/T in advance,balance 70% before shippment.For sample order, 100% payment before production.

Q: How about warranty?
A: 1 year warranty, If you have any questione when using, just feel free to contact us, we have 24 hours service.
