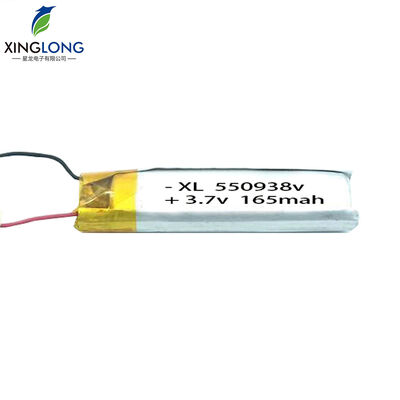

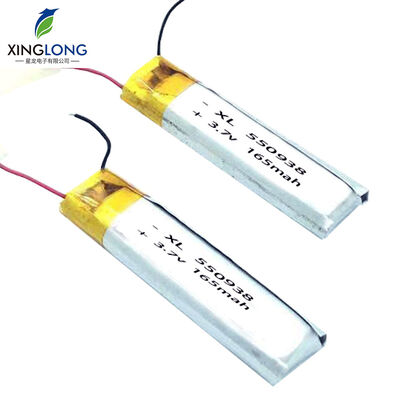

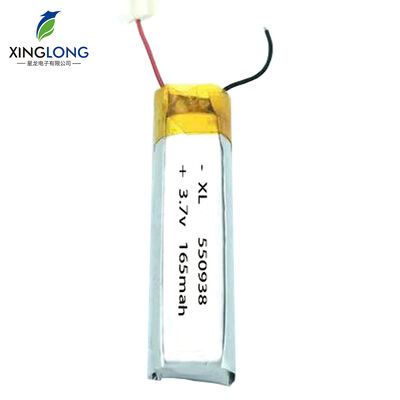

550938 Small Lithium Polymer Battery 165mah 3.7v for Headset Battery
Product Details
| Application: | Toys, Power Tools, Home Appliances, Consumer Electronics, Boats, Uninterruptible Power Supplies | Weight: | 4g(0.14oz) |
|---|---|---|---|
| Type: | Li-polymer | Specifications: | 550938 |
| Product Name: | Polymer Lithium Battery | Capacity: | 165mah |
| Voltage: | 3.7v | Size: | H5.5mm*W9mm*L38mm |
| Temperature: | -20~60 | Cycle Life: | 500 Times |
| Warranty: | 12Months, 12 Months | Scope Of Use: | Bluetooth, Headset,Since The Shaft,Loudspeaker Box |
| Anode Material: | NCM | The Charging Ratio: | 4.25v |
| The Discharge Rate: | 2.75v |
Product Description
| No. | Item | Specifications | Remak |
| 1. | Specifications(550938) | capacity:165mAh | 0.2C Rate discharge after standard charge |
| 2. | voltage | 3.7V | Mean operation voltage during standard |
| 3. | Voltage at end of discharge | 2.75V | Discharge cut-off voltage |
| 4. | Charging cutoff voltage | 4.2V | |
| 5. | Impedance | ≤200mΩ | 3.7v 165mah lipo battery |
| 6. | Standard charging | Constant current 0.2C | |
| Constant voltage 4.2V | |||
| Cut-off current≤0.01C | |||
| 7. | Standard discharge | Constant current 0.2C | |
| End voltage 2.75V | |||
| 8. | Fast charge | Constant current 0.5C | |
| Constant voltage 4.2V | |||
| Cut-off current≤0.02C | |||
|
9. |
Fast discharge | Constant current 0.5C | |
| End voltage 2.75V | |||
| 10. | Maximum continuous discharge current | 1.0C | |
| 11. | Operation | Charge: 0~45°C | 60±25%R.H |
| Temperature range | Discharge: -20~60°C | ||
| 12. | Cycle life | 500times | |
| 13. | Storage temperature | -20 ~ 45°C | |
| 14. | Weight | 3.5g | |
| 15. | Dimension(mm) | Height*Width*Length | 5.5*9*38(mm) |
1.We not only supply lithium batteries, but also provide customers with various solutions.
2.High capacity and high density lithium ion battery.
3.Stable battery performance and high utilization rate.
4.Green environmental protection materials, safe and pollution-free.
5.Battery short circuit protection, safe to use.
6.Factory price.
7.Models complete, can be customized according to customer requirements.
Product Highlights
Product Description No. Item Specifications Remak 1. Specifications(550938) capacity:165mAh 0.2C Rate discharge after standard charge 2. voltage 3.7V Mean operation voltage during standard 3. Voltage at end of discharge 2.75V Discharge cut-off voltage 4. Charging cutoff voltage 4.2V 5. Impedance ...
